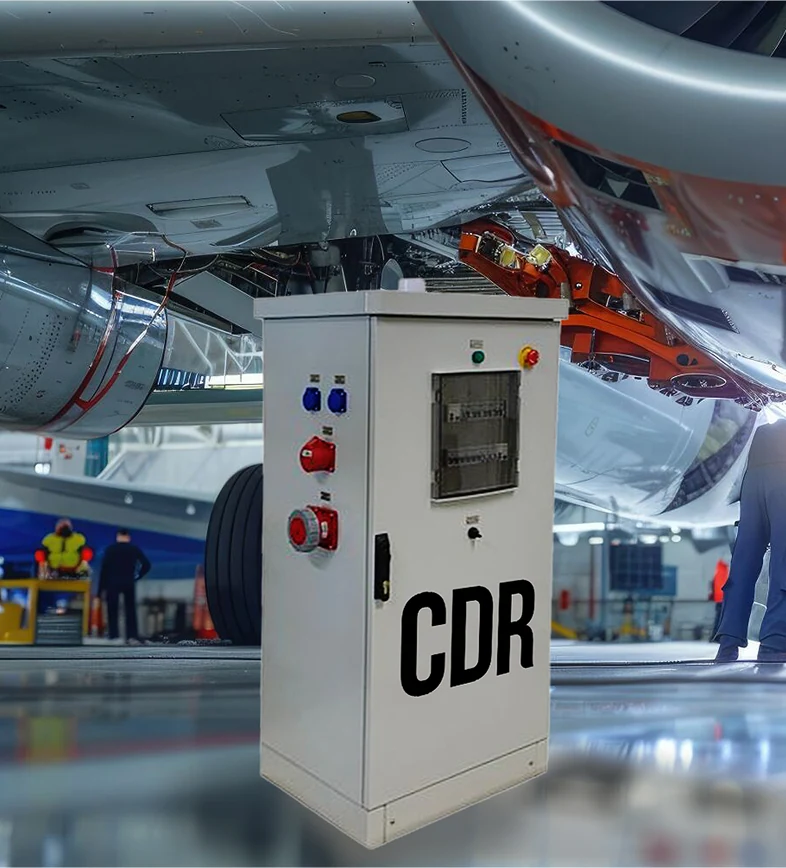

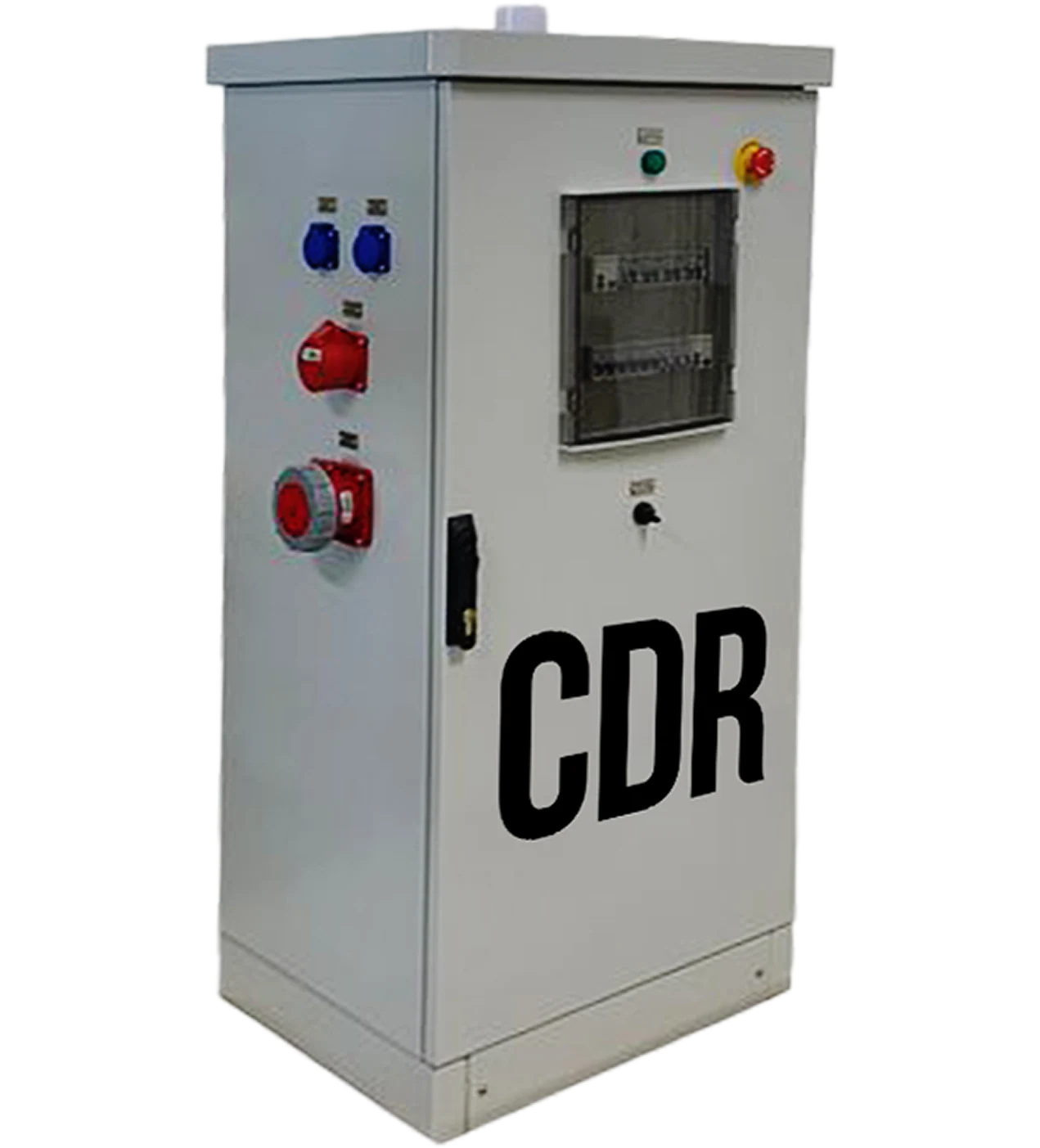

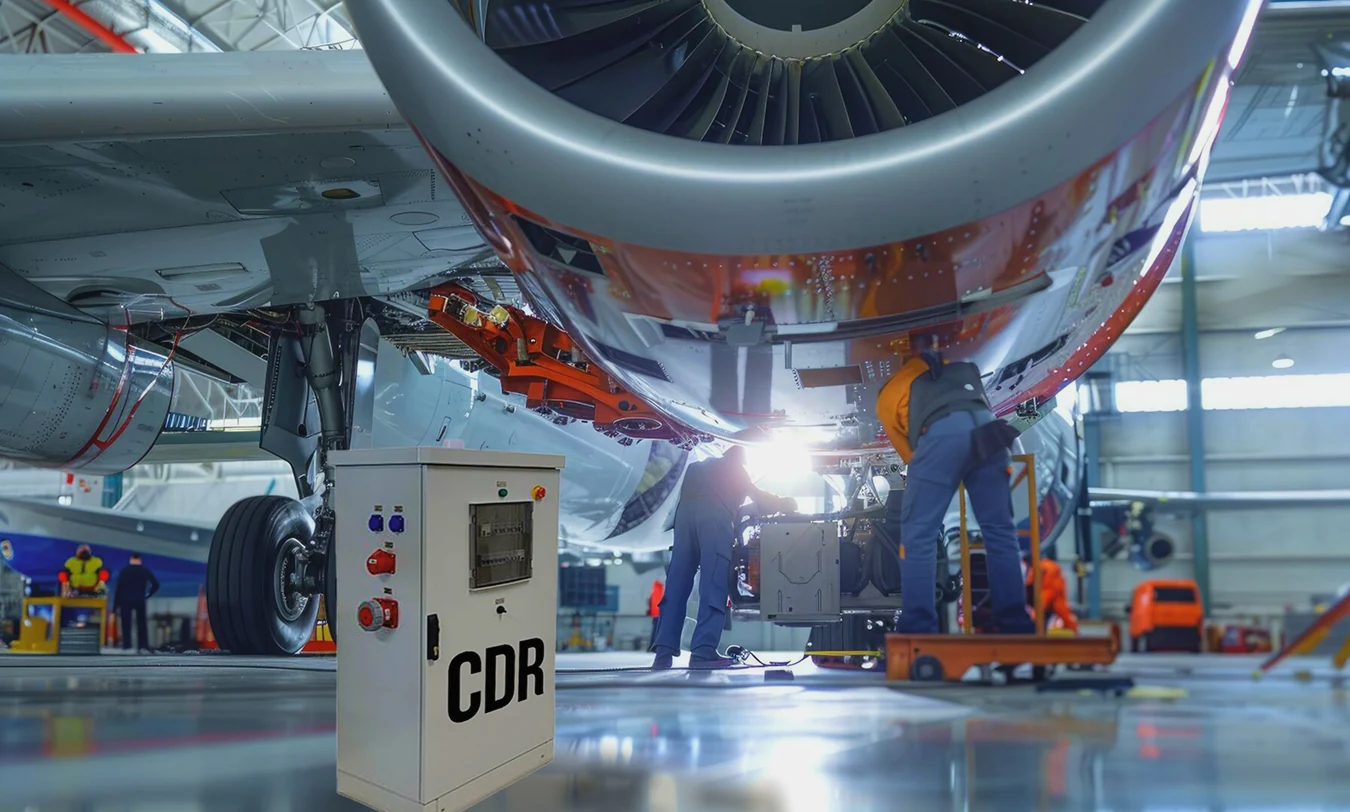

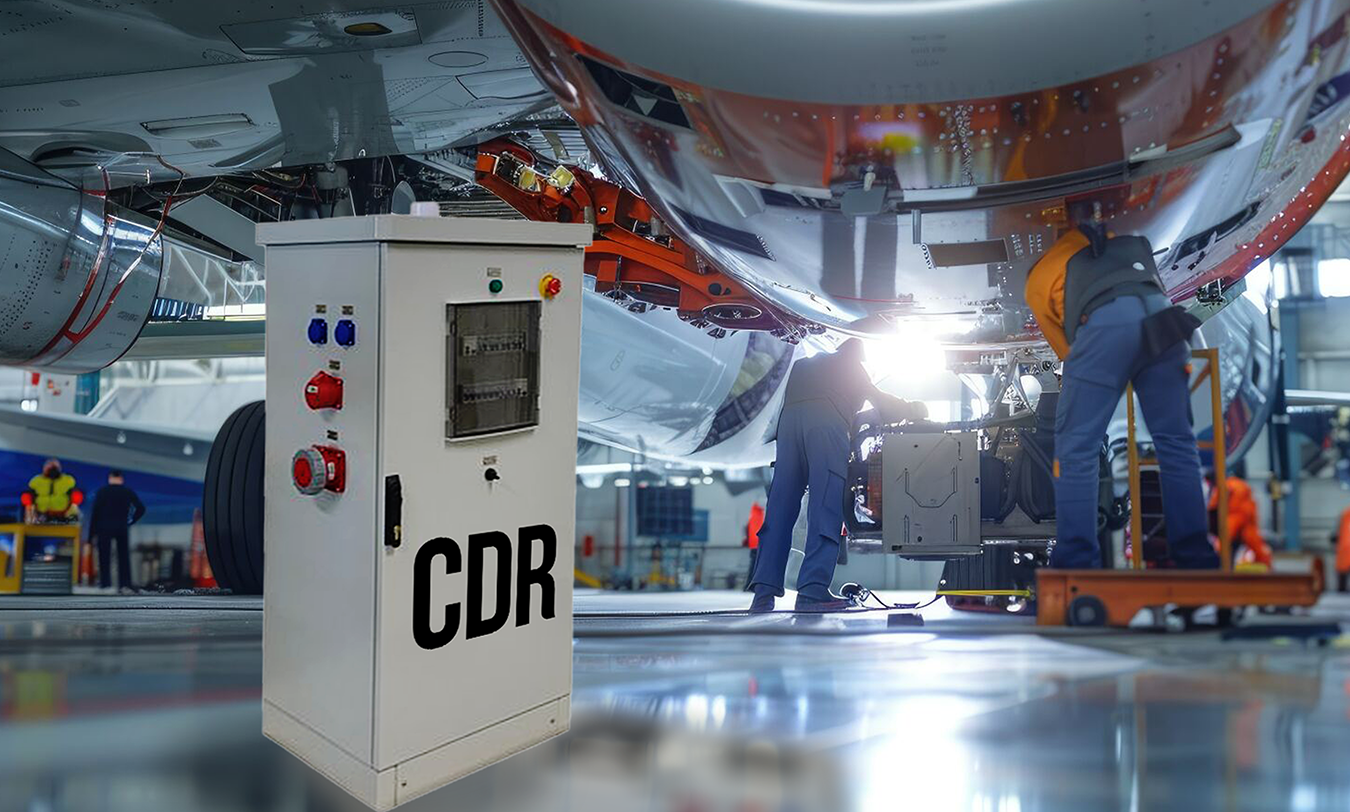

DP-50/60 Series
Distribution pillar
Efficient ground systems ensuring safe and seamless aircraft servicing
DP-50/60 Series
Distribution pillar
The CDR power pillars provide AC and DC connection points for workshops and hangars.
- AC: 220/400 V—50/60 Hz
- Special: 115/200 V—400 Hz
- DC: 28 V
Each line can be equipped with:
- High-speed switch
- Voltage and status indicators
Options
- Built-in remote control
- Certified counters (400 Hz/ 28 V)
- Anti-condensation heating
- Custom integrations on request
- Power consumption monitoring
- Remote monitoring
General
- Climatic execution: up to client’s needs
- Humidity: up to 100 %
- Cover protection class: IP 55
- Electric connection class of protection: IP 67
- Country of origin: Estonia
Parameters
50/60 Hz 3 phase outputs
400 VAC 16 A
400 VAC 32 A
400 VAC 63 A
Other voltages
400 VAC 125 A
400 VAC 160 A
400 VAC 200-250 A
50/60 Hz 1 phase outputs
400 VAC 16 A
400 VAC 32 A
400 VAC 63 A
Other voltages
400 VAC 125 A
400 VAC 160 A
400 VAC 200-250 A
28.5 V outputs
Up to 1600 A continuous
400 Hz 3 phase outputs
115/200 V, up to 360 kVA
36 V, up to 30 kVA
