Ground Power Units

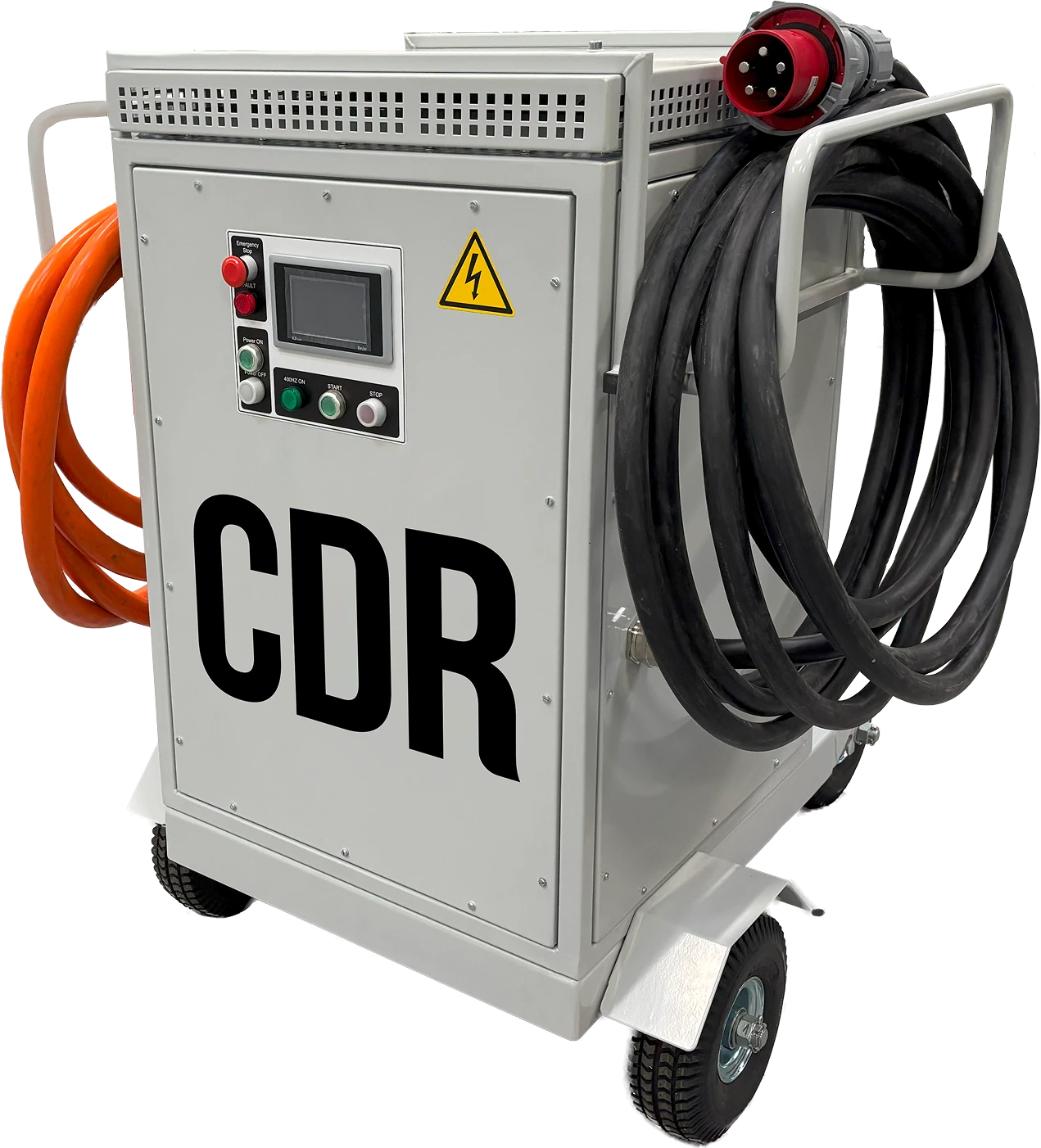

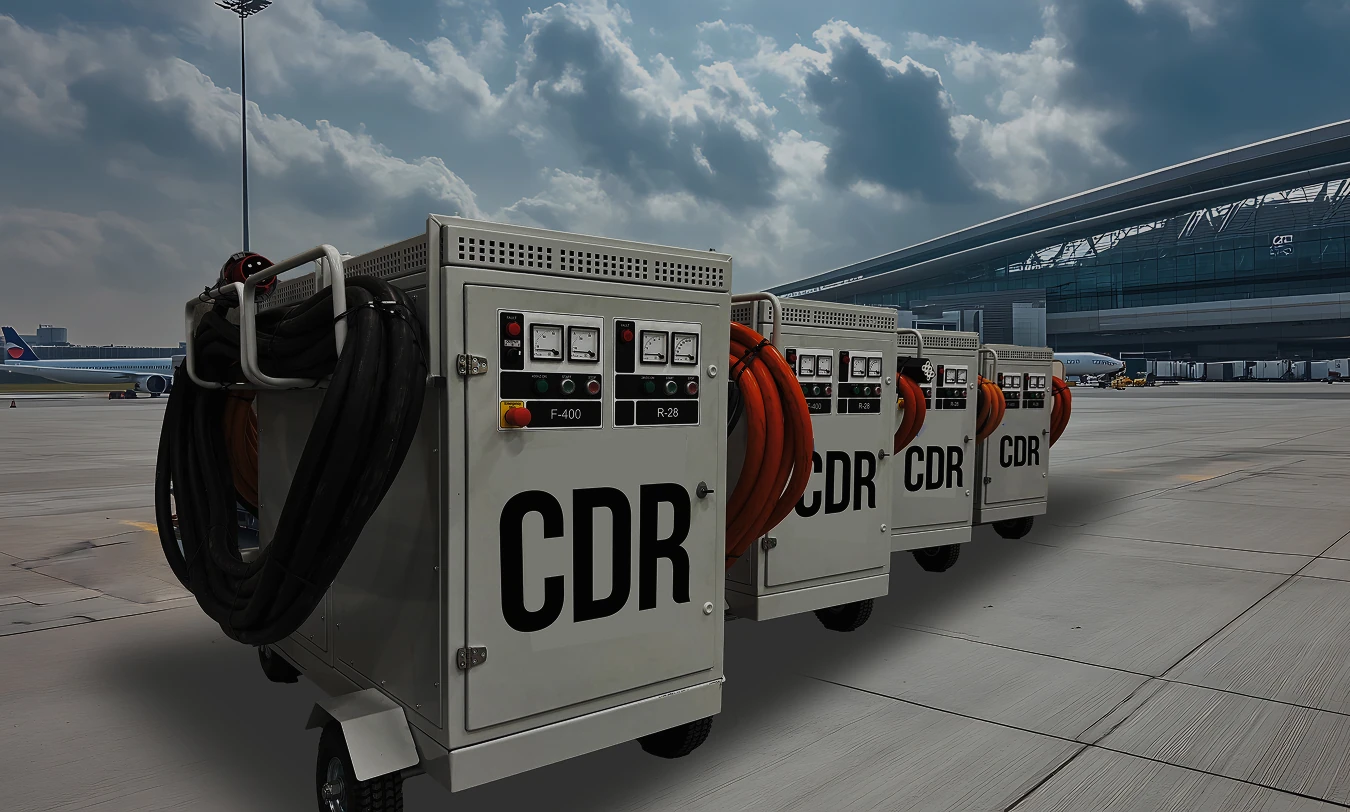

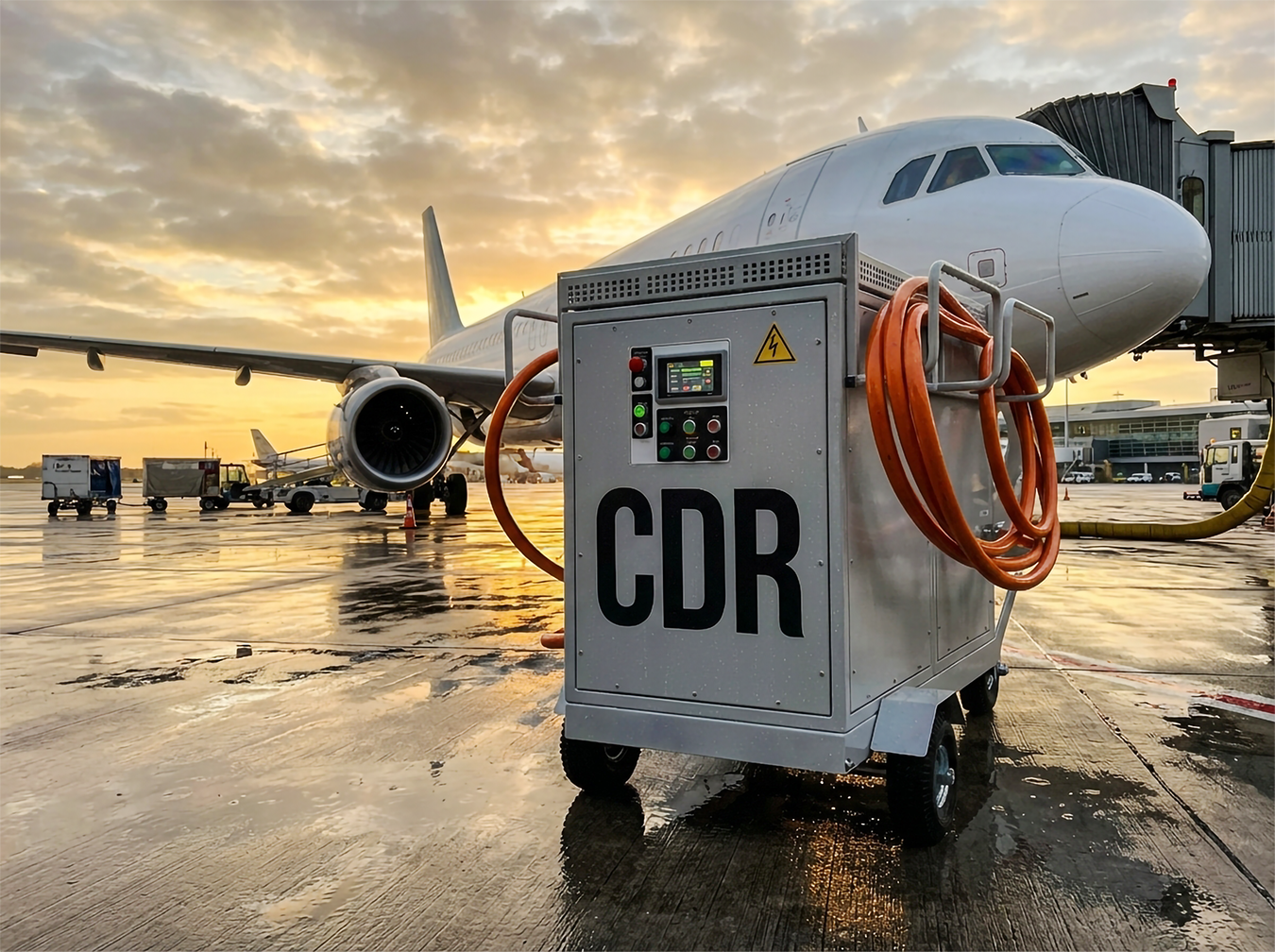

F-400 Series

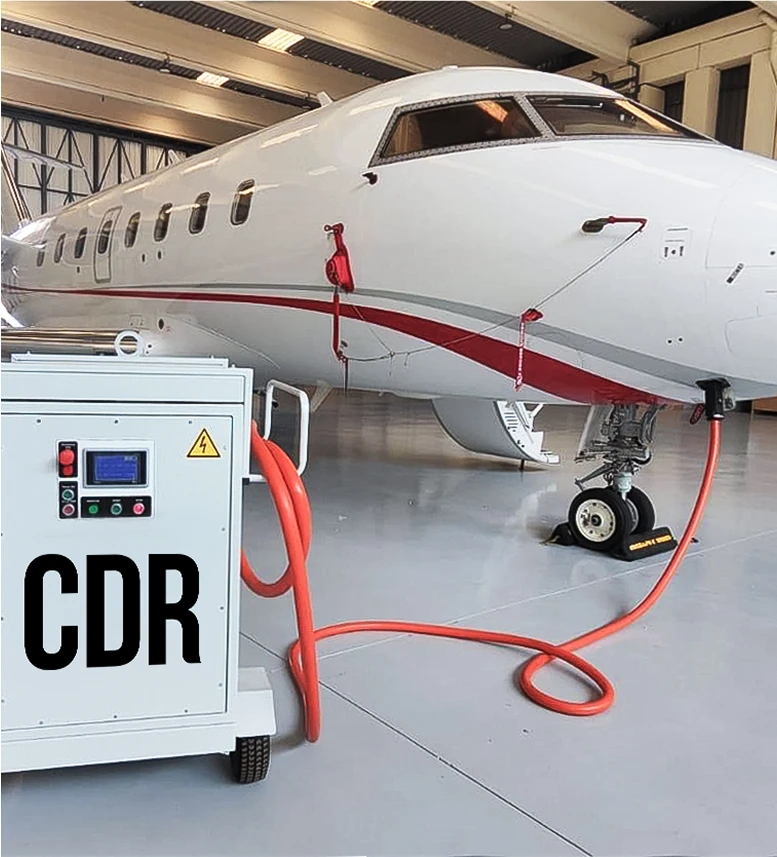

The frequency converters of F-400 series are developed for the ground servicing of all aircraft types, laboratory equipment with:
- a frequency of 400 Hz
- rated capacity up to 360 kVA
F-400 series converters assist with the fast, reliable, and safe launch of aircraft engines.
They provide uninterrupted electrical supply
Protocol
- SCADA
- MODBUS
- TCP / IP
- RS485
Adjustments
- Any power rate according to client needs
- Up to 5 output channels
- Simultaneous work of output channels
Temperature and humidity
- Standard (-55°C to +55°C)
- Relative humidity up to 100 %
Absolute voltage quality — ISO 6858
Max. phase unbalance is less than 2 V
Automatic voltage drop compensation
on the cable (up to 200 m)
Phase angle 120º ± 2,5 %
Absolute voltage quality — ISO 6858
Max. phase unbalance is less than 2 V
Automatic voltage drop compensation
on the cable (up to 200 m)
Phase angle 120º ± 2,5 %
Very stable frequency: 400 Hz ± 0,01
Possibility to regulate: 360 Hz to 450 Hz
.webp)

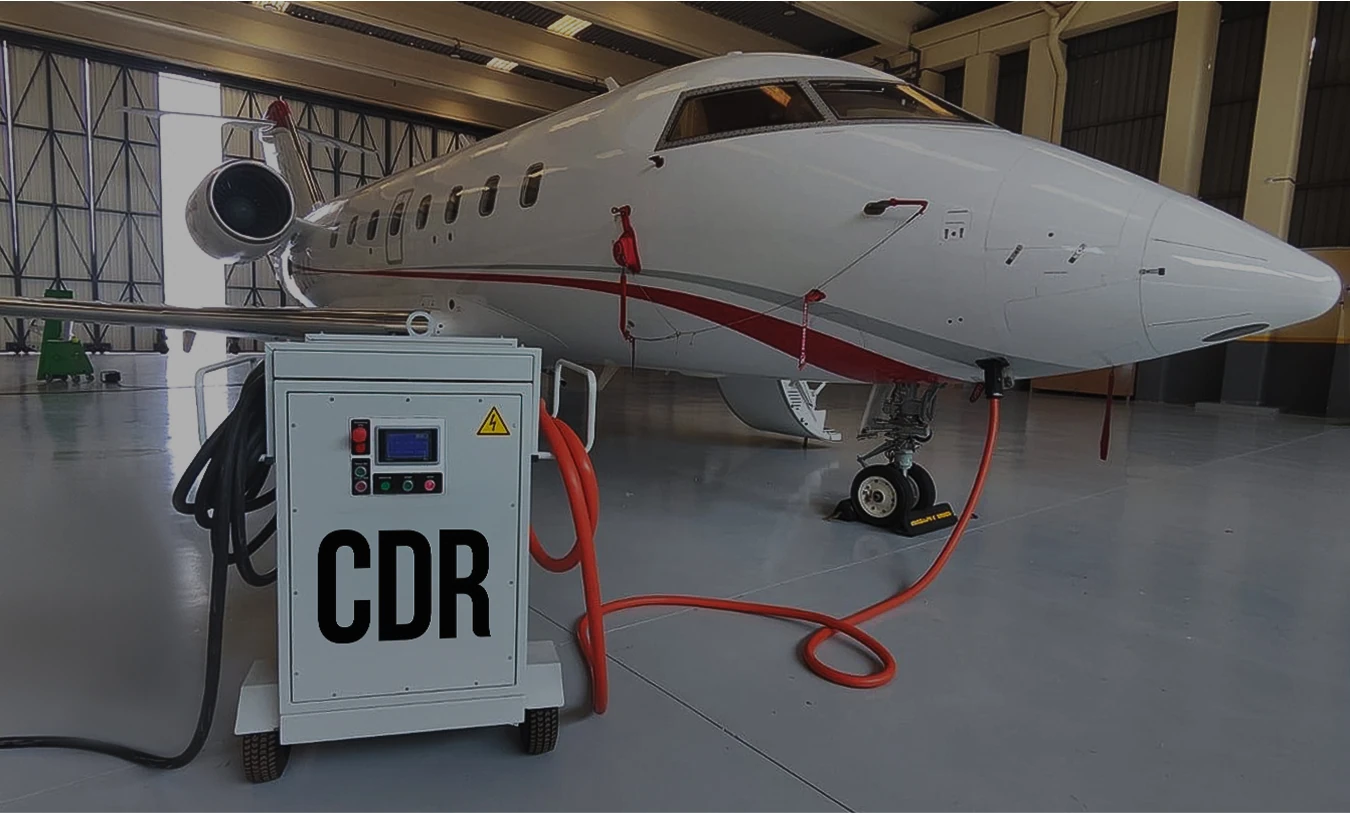

R-28 Series
The new-generation rectifiers of R-28 series are developed for ground servicing of aircraft and helicopters with:
- voltage of 28.5 V
- continuous current up to 1600 A (overload up to 2500 A)
Monitoring system
- Energy consumption monitoring system
- Power log and «black box» mode
Eco-friendly
- No CO2 emissions
- Maximum usage of recycle materials
- Extraordinary personnel safety features
- Easy to operate
- Noise level <65 dB(A) @1 m
Monitoring system
- Energy consumption monitoring system
- Power log and «black box» mode
Rated current up to 1600 A with overloads up to 2500 A
Rated current up to 1600 A with overloads up to 2500 A
Dual independent output channel option
Ability to work on a 28 V/ 48 V/ 56 V mode
Modular system — easy to replace
Estimated time to repair is less than 10 min

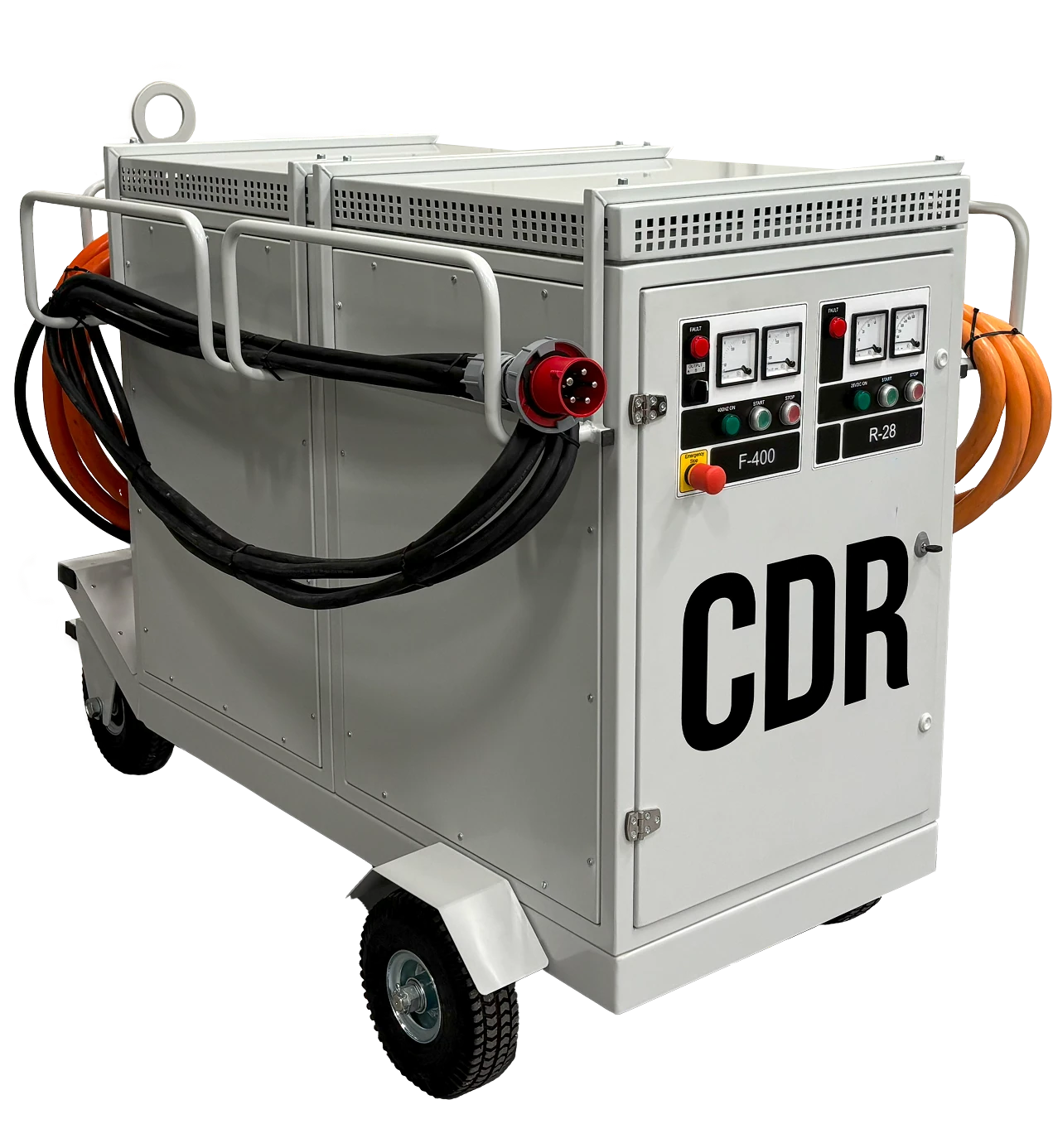

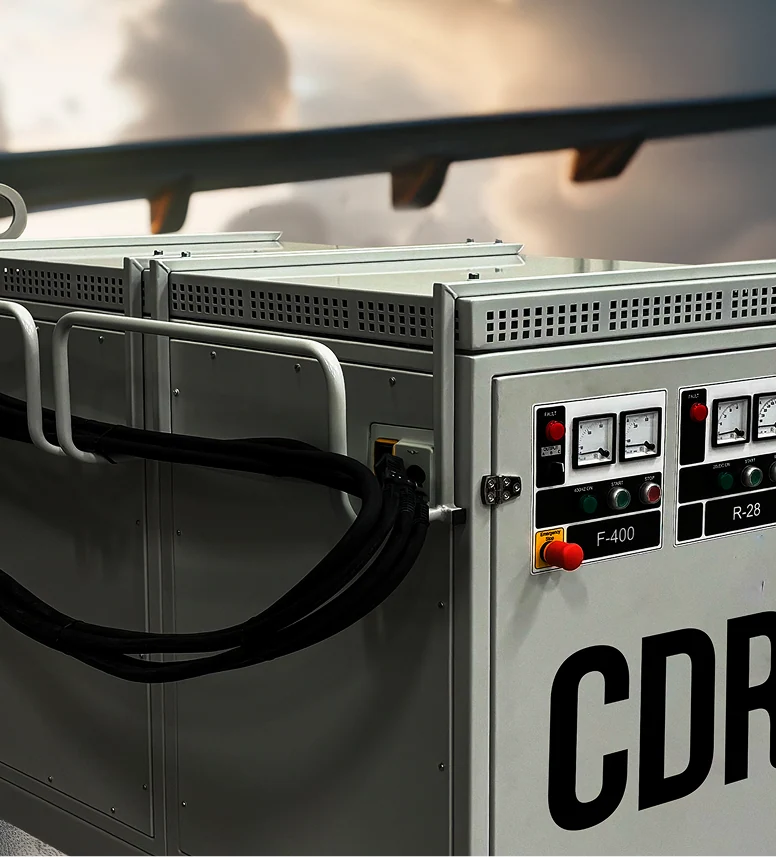

FR-400/28 Series

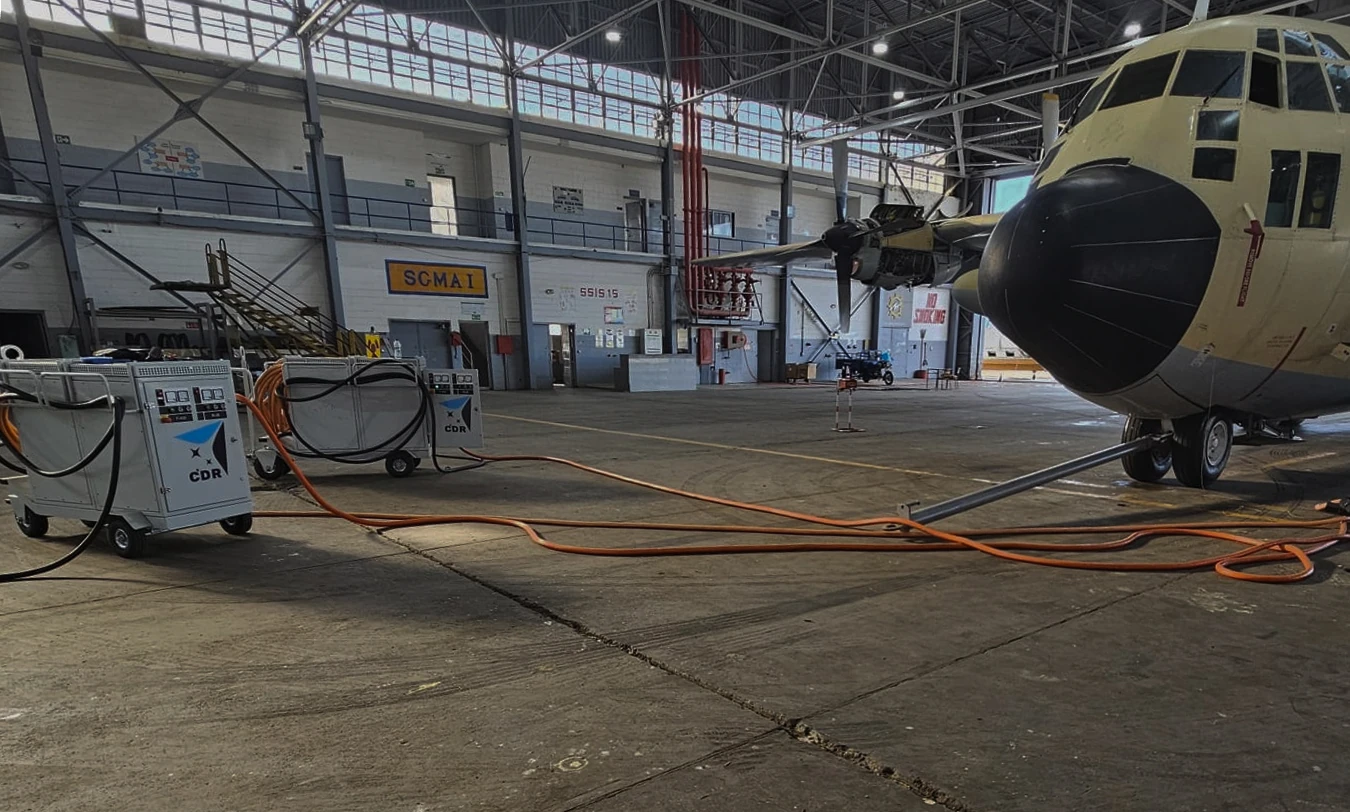

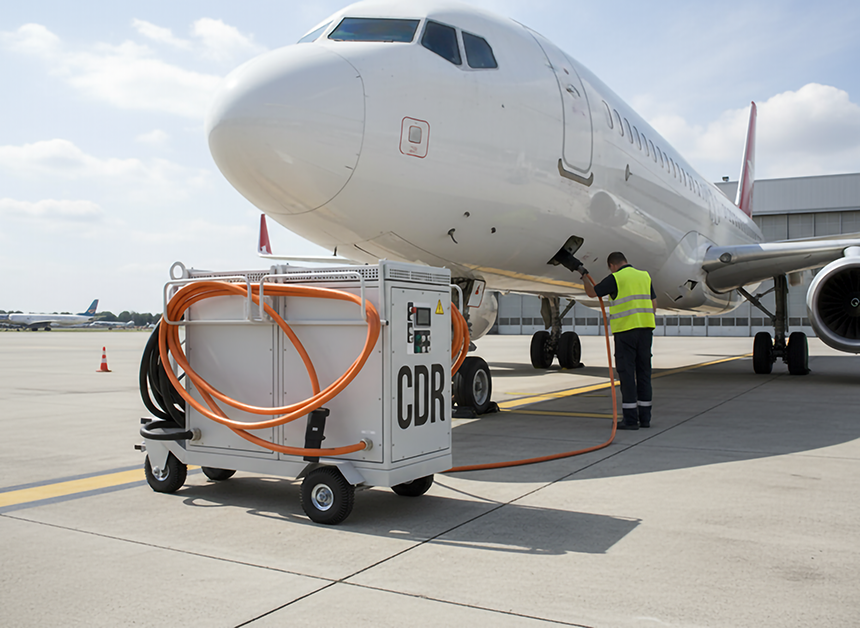

The combined supply units of FR-400/28 series are designed to power on-board systems of aircraft and helicopters during ground handling at airports, shop floors, and training centers.
- DC output: 28,5 V
- AC output: 400 Hz
All channels can be adjusted and operated simultaneously.
Voltage drop compensation is individually set for each output.
DC Modes
- Dual-channel: 28 /48 /56 V
- Single-channel: 28,5 V
Totally customizable
- Trolley
- Color
- Cable length
- Technical parameters
Independent AC and DC outputs
Possibility of simultaneous work of all channels
Independent AC and DC outputs
Possibility of simultaneous work of all channels
Special 400 Hz 36 V output
Ability to work on a 28 V/ 48 V/ 56 V mode
50/60 Hz sockets
